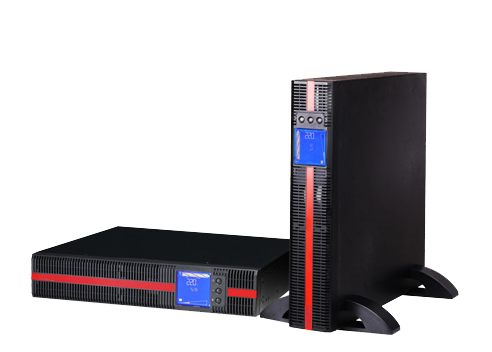

Protect mission-critical loads with the Razor UPS from Raptor Power.  Razor UPS Systems are designed to provide reliable high-quality power.

Key Advantages

  • Power Factor 1.0 for Larger Power Density
  • Pure Sinewave Output with Double Conversion Topology
  • Extremely Low THD suitable for Delicate Instruments
  • Diagram LCD with Auto-Rotation for better User experience
  • Hot-Swappable Battery Replacement for Maintenance
  • Overload, Surge, Short Circuit Protection
  • Power Range - 1000 / 2000 / 3000 / 6000 / 10000VA
 UPS
Model
RU-1000
RU-1500
RU-2000
RU-3000
RU-6000
RU-10000
Capacity(VA)
1000 VA
1500 VA
2000 VA
3000 VA
6000 VA
10K VA
Capacity(Watts)
1000 W
1500 W
2000 W
3000 W
6000 W
10K W
Form
Rack & Tower

 INPUT
Voltage
208 / 220 / 230 / 240 Vac
Voltage Range
120 - 140 Vac, < 25% Load
140 - 160 Vac, < 50% Load
160 - 180 Vac, < 75% Load
180 - 276 Vac, < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes

 OUTPUT
Rated Power Factor
1.0
Waveform
Pure Sine Wave
Voltage
208 / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
≦ 3% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Option
Output Receptacle Option

 PROTECTION
Overload Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Battery Mode
101% - 109% for 10 seconds
110% - 120% for 3 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately

 BATTERY
Model
RUB-1000
RUB-1500
RUB-2000
RUB-3000
RUB-6000
RUB-10K
Type
12V 7Ah
12V 9Ah
12V 7Ah
12V 9Ah
12V 5Ah
12V 9Ah
Quantity
3
3
6
6
20
20
Sealed, Maintenance Free
YES
Typical Recharge Time
4 Hr to 90%
External Battery Module
Option
Yes
External Battery Connector
Option
Yes

 ENVIRONMENT
Operating Humidity
0~90% RH at 0~40°C(Non-condensing)
Audible Noise
Less than 40 dB
Less than 55 dB
Altitude
< 2000m
Heat Dissipation (BTU/h)
342
512
683
1024
2047
3412

 MANAGEMENT & COMMUNICATION
LCD Control Panel
YES
Communication Port
RS232, USB(B-type)
SNMP Slot
Option
Audible Alarms
YES

 PHYSICAL
Power Module Dimensions(WxDxH)(In)
16.8 x 16.7 x 3.3
16.8 x 25 x 3.3
Weights(Lbs)
32.4
35.7
57.8
64
34.7
44
Shipping Dimensions (Lbs)
546 x 552 x 206
550 x 750 x 220
Shipping Weights (Lbs)
38.6
42
66
73.7
39.5
53
Battery Module Dimensions(WxDxH)(In)
16.8 x 16.7 x 3.3
16.8 x 25 x 3.3
16.8 x 25 x 3.3 (2U)
16.8 x 25 x 5.1 (3U)
Weights(Lbs)
46
82.3
92.6
150
Shipping Dimensions (In)
21.5 x 21.7 x 8.1
21.7 x 29.5 x 8.7
19.7 x 28.5 x 8.7
32.7 x 23.3 x 14.6
Shipping Weights (Lbs)
51.6
90
100.5
183
* While 208V output, capacity will derated to 90%



* Specifications are subject to change without further notice



* Specifications are for reference, actual information should be based on real product
