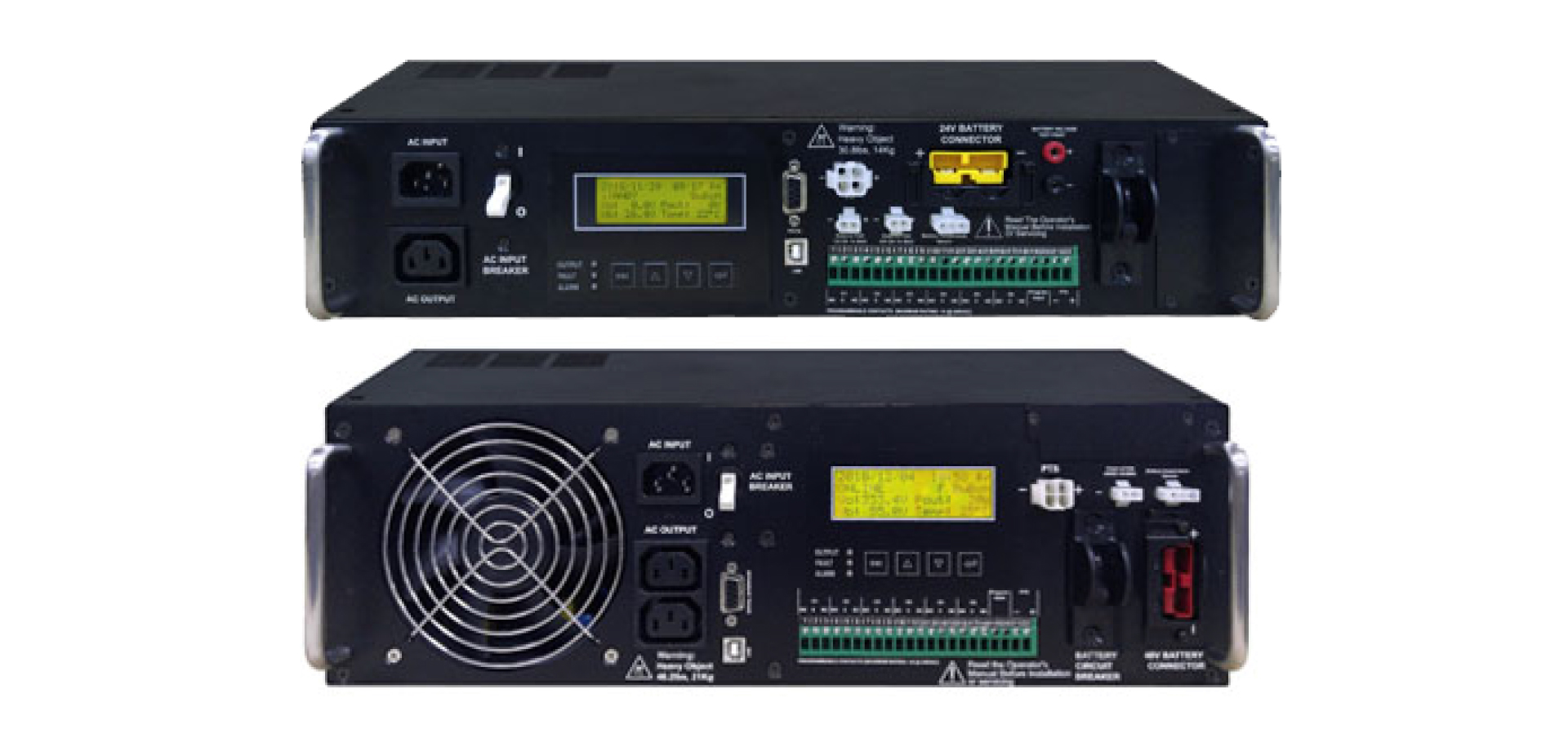

Line-Interactive UPS for MIL and transportation applications. Built for a wide operating temperature (-37°C to 74°C) with no deration.

Key Advantages

  • Line-Interactive UPS for Outdoor and Hi-Temp Applications
  • Specialized for Wide Operating Temperature (-37°C to 74°C)
  • No Derating at Extreme Temperature Range (-37°C to 74°C)
  • Six Fully Programmable Dry Contacts
  • Wide Input Voltage and Frequency
  • Specialized SNMP and MIB file support
  • User Friendly and Rotatable LCD Display
 UPS
Model
NP-650
NP-1100
NP-2000
NP-2500
NP-3000
Capacity(VA)
650 VA
1100 VA
2000 VA
2500 VA
3000 VA
Capacity(Watts)
650 W
1100 W
2000 W
2500 W
3000 W

 INPUT
Voltage
120 / 220 / 230 / 240Vac ±25%
220 / 230 / 240Vac ±25%
Frequency
120 Vac 60Hz  220 / 230 / 240Vac 50/60Hz

 OUTPUT
Waveform
Pure Sine Wave
Voltage
120 Vac or 220 / 230 / 240 Vac
220 / 230 / 240 Vac
Frequency
50 / 60 Hz ± 0.5 Hz
Transfer Time
Normal Mode(Max)
12 ms
Generator Mode(Max)
25 ms
AC Input & Output Connectors
Terminal block, anderson PP45 quick connector, IEC socket

 PROTECTION
Full Protection
Overload, Breaker

 MANAGEMENT & COMMUNICATION
Communication Port
RS232, USB(B-Type), SNMPCard(Option)

 BATTERY
String Voltage
24 / 48 VDC
48 VDC
Type
Lead-acid battery
Max Charge Current
NPB-650 / 1100 10A, NPB-2000 / 2500 3000 10A, (30A Option)

 INDICATORS
LCD Display
4 line multi-function LCD
LED Display
Output status, alarm, fault LED

 ENVIRONMENT
Operating Temperature
-37 ~ 74°C
Operating Humidity
0 ~ 95 % RH (Non-condensing)
Audible Noise
Less than 50dB
Less than 60dB

 PHYSICALY
Dimensions(WxDxH)(In)
17 x 10 x 3.5
17 x 10 x 5.3
17 x 12.6 x 5.3
17 x 10.3 x 5.3
Weight (Lbs)
28.7
46.3
75
Shipping Dimensions(In)
21.3 x15.3 x 9.2
21.3 x 15.3 x 11
21.3 x 17.9 x 11
24.3 x 21.8 x 15
Shipping Weight (Lbs)
31
51
53
102
