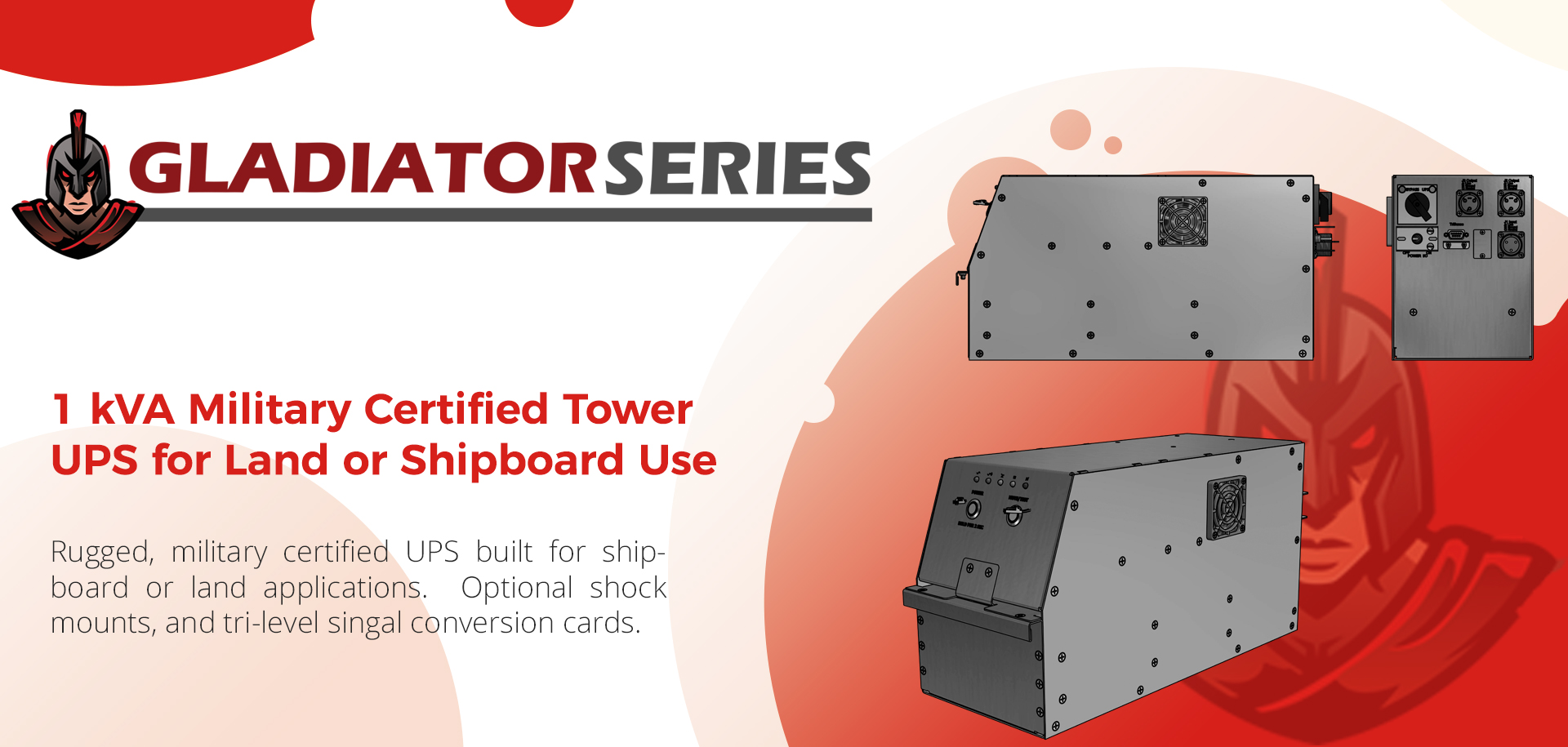

Military UPS

Output

Output Voltage Amp Capacity (VA)

1500

Output Watt Capacity (W)

980

Nominal Output Voltage

110, 115, 120 VAC

Nominal Output Voltage in Battery Mode

120 VAC

Frequency

60 Hz

Output voltage regulation

+18% + 8%

Output voltage regulation in Battery Mode

+/- 5%

Output Receptacles

(2) MIL5015 (MS3102R16-10S)

Output AC Waveform

Sine Wave



Input

Input Current

12A

Nominal Input Voltage

120 VAC

Input connector

(1)    MIL5015 (MS3102R16-10P)

Input Phase

Single

Input Frequency

60 Hz



Voltage Regulation

Voltage Regulation

Automatic Voltage Regulation (AVR) range 75-147 VAC



Input voltages between 128-147 are reduced by 12%



Input voltages between 93-107 are boosted by 14%



Input voltages between 75-92 are boosted by 30%



Battery

Full Load Runtime

8 Minutes

Half Load Runtime

20 Minutes

Battery type

Sealed Lead Acid

Battery Replacement

Front Mounted Hot Swappable / Field Replaceable

Battery replacement part number

RPS-BC-1.0T



User Interface

RS232

DB9 TriSense Compatible

USB

Optional

LED Indicators

5 LEDS indicating unit status

Audible alarm

Alarm for power failure, low battery & overload

Audible Alarm Silence

Audible alarm can be silenced



Other Features

Bypass

Manual Bypass switch on rear of unit

AC Suppression

480 J

AC Suppression Response Time

Instantaneous

Transfer time to battery

2-4 milliseconds

Voltage transfer point (High / Low)

147-75



Environmental

Operating Temperature

+32 - 104 F

Storage Temperature

+5 – 122 F

Relative Humidity

0-95 RH% non- condensing

AC Mode BTU @ Full load

139

Battery Mode BTU @ Full load

456

Efficiency @ 100% Load

96%



Physical

Weight

40 lbs.

Dimensions (LXWXH) inches

16.44 (17.64 including switch guard) x 6.79 x 8.77

Relative Humidity

0-95 RH% non- condensing

AC Mode BTU @ Full load

139

Battery Mode BTU @ Full load

456

Efficiency @ 100% Load

96%



Military Standards

Shock

MIL-STD-901D Grade A Certified

Vibration

MIL-STD-167-1 Type 1 Certified

Electrical Environment

MIL-STD-1399 Section 300 Certified

EMI / RFI

MIL-STD-461 Optional
